AEMC Clamp-on Meter Model 675

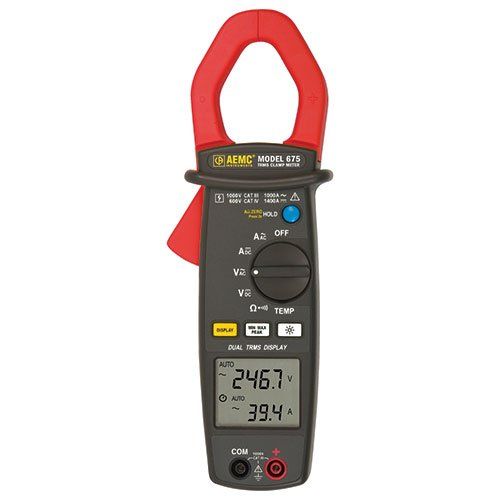

AEMC Instruments Clamp-on Meter Model 675

Clamp-on Meter Model 675 is a general purpose professional instrument that measures up to the toughest standards.

The Model 675 is sized for comfortable, one-handed operation. The tapered and hooked jaw design facilitates maneuvering in crowded wiring and breaker panels, making it easy to select conductors. The jaw opening accommodates one 750kcmil cable or two 350kcmil cables. The large and easy-to-read 9999-count LCD features comprehensive user information symbols, such as low battery, polarity, overload, and an analog bargraph for easy trend readings. The Model 675 is equipped with a Data Hold function that freezes the measurement for later viewing, Min/Max, and Peak function for capture of signals. This Model 675 is a True RMS clamp-on meter that provides RMS measurements for today’s non-linear electrical environments.

Product Features:

  • Dual display
  • Standard size, full function clamp on meter
  • 1000Aac/dc current measurements (DC current on Model 675 only)
  • 1400Vdc volt measurements
  • TRMS measurements
  • Resistance measurement to 10,000Ω
  • Continuity with beeper below 35Ω
  • Frequency measurements from V and A inputs
  • 1ms peak function for fast capture of signals
  • Hold function to “freeze” readings
  • Designed to measure amps and volts at the same time
  • Push-button for easy Adc zeroing • Large, easy-to-read 10,000-count, backlit LCD display


Jaw Opening:

  •  1.58" (40mm) Conductor Size: one 750kcmil cable or two 350kcmil cables

Applications:

  • Commercial, industrial, residential and HVAC troubleshooting
  • Power panel, junction box and battery bank monitoring
  • AC or DC motor testing
  • Power plant troubleshooting
  • Electrical testing and troubleshooting on non-linear loads, such as adjustable speed drives and computers
