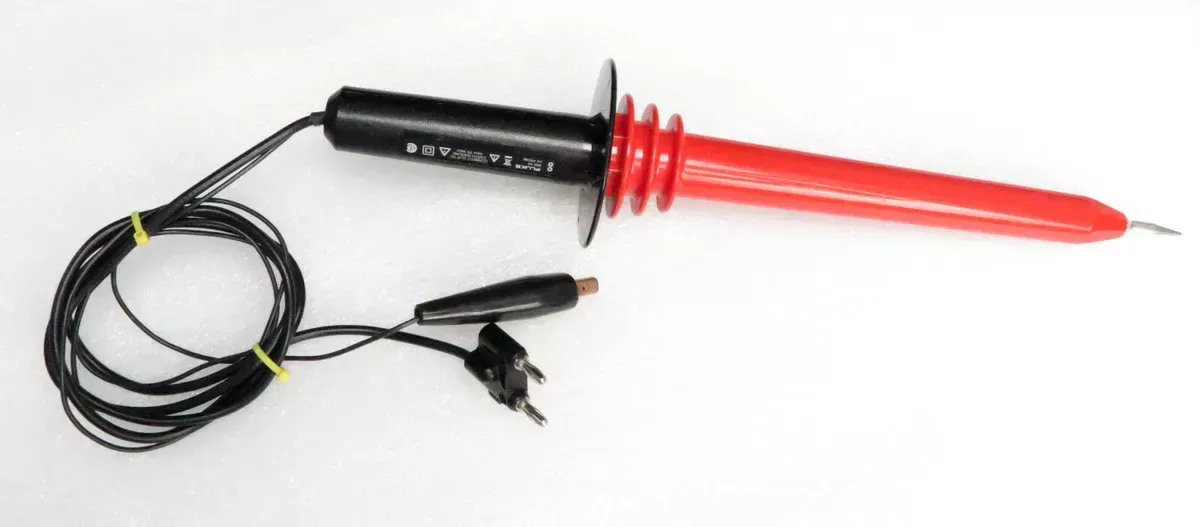

Fluke 80K-40 High Voltage Probe

Fluke 80K-40 High Voltage Probe

Fluke 80K-40 High Voltage Probe


  • The 80K-40 is a high voltage probe designed to extend the voltage measuring capability of an AC/DC voltmeter to 40,000 volts peak AC or DC Overvoltage Category I. This means the probe can only be used to make measurements on energy limited circuits within equipment. Examples include high voltage within televisions or photo copy machines. DO NOT use this probe to measure high voltages on power distribution systems. The probe provides high accuracy when used with a voltmeter having 10 Megohm input impedance.

Key features: Fluke 80K-40 High Voltage Probe


  • A high voltage probe that allows a multimeter to measure up to 40,000V respectively. Intended for low energy applications only
  • One year warranty

Manufacturer Specs: Fluke 80K-40 High Voltage Probe

Specifications

  • Voltage Range 0 to 40kV DC or peak AC, 28kV rms AC
  • Basic Accuracy DC to 500Hz DC +/- 1% to 2% 60Hz: +/- 5%
  • Division Ratio 1000:1
  • Safety Standards IEC 1010-2-031:1993, Type B, 40 kV DC or peak AC, 28kV rms AC, Overvoltage Category I (voltage derived from limited energy transformer).
  • Input Resistance 1000 Megaohms
  • Required Meter Input Resistance 10 Megaohms


Tech Specs: Fluke 80K-40 High Voltage Probe

Accessories/Probes/Multimeter Probes/High Voltage DMM Probes Template

  • Input Impedance 1000 M Ohms
  • Maximum Frequency 60 Hz (0.00000006 GHz)
  • Maximum Voltage 40 kV (40000 V)
  • Attenuation (Probes) 1000x
  • Interface (Probes) Banana
  • CAT Voltage Rating I


Test Equipment General Attributes: Fluke 80K-40 High Voltage Probe

  • Unique Features NOT MEANT FOR POWER SYSTEMS.CAT 1 Rated usage ONLY
  • Warranty 1 YEARS
  • Product Height 3.25 IN
  • Product Length 18.50 IN
  • Product Width 6.75 IN
  • Country of Origin United States
