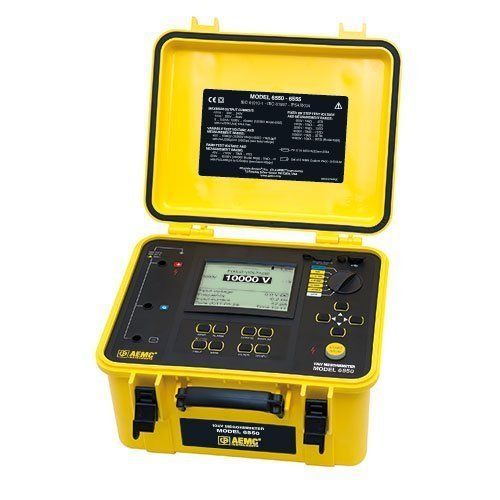

AEMC 10kv Digital Megohmmeter Model 6550

AEMC 10kv Digital Megohmmeter Model 6550

Model 6550 makes insulation measurements at voltages up to 10,000V

The Megohmmeter Models 6550 is a high-end portable instruments intended for measuring a wide variety of electrical insulation resistance values on cables and devices operating at high voltage. They are packaged in a rugged case that is IP54 rated (cover closed). Test results and configuration information is provided on a graphical LCD screen, as well as exportable through the use of the DataView® software provided. The Megohmmeters can operate on battery or AC power while testing.


These Megohmmeters contribute to the safety of electrical installations and equipment. Their operation is managed by microprocessors that acquire, process, display and store the measurements.

Main Functions:

  • Detection and measurement of input voltage, frequency, and current prior to running a test.
  • Quantitative and qualitative insulation measurements.
  • Measurements at a fixed test voltage of 500, 1000, 2500, 5000, 10,000Voc.
  • Measurements at an adjustable test voltage between 40 and 10,000Voc preselected by the user prior to the test. Three preselected test voltages can be stored in the instrument and can be modified as needed prior to starting a test.
  • Ramp voltage measurements with a ramp from 40 to 10,000V, model dependent. Three ramp profiles can be stored in the instrument. Each ramp profile includes the starting and ending test voltage and the ramp time between the two.
  • Step voltage measurements with steps from 40 to 1 0,000V, model dependent. Three step voltage profiles can be stored in the instrument. Each contains up to 1 0 steps that include test voltage and duration.
  • Three test current choices: Burn-In, Early-Break and I-Limit provide qualitative analysis tools for detection breaks in insulation.
  • Quality ratio calculations for DAR, Pl, and DD are calculated and displayed.
  • Temperature correction of the measured resistance to a reference temperature.
  • Capacitance measurement of the device tested.
  • Residual current measurement
AEMC 10kv Digital Megohmmeter Model 6550

Features:

  • True Megohmmeter®
  • Fixed or programmable test voltage from 40V to 10kV
  • Wide measurement range from 1 0kn to 30TQ
  • SmA charging current
  • Step voltage testing
  • Ramp voltage testing
  • Automatic calculation of DAR / Pl / DD / 􀀁R (ppm / V) ratios
  • Digital filtering of insulation measurements to eliminate noise and erratic display of the results
  • Live measurement of the voltage to warn the operator of potential unsafe conditions
  • Programmable thresholds to trigger audible alarms which aid the user in fault detection
  • Timed measurement duration checks
  • Current limit programming
  • Fuse protection, with display indication of defective fuse condition
  • Automatic discharging of the test voltage on the tested device at the end of the measurement provides for operator safety
  • Auto Power Off mode saves battery power
  • Battery charge indication
  • Internal storage of up to 80,000 measurements
  • Real-time clock
  • Large backlit LCD screen with digital display, bargraph and R(t)+u(t), l(t) and l(V) graphs
  • Multiple test modes: voltage ramp and step voltage with "Burn-In", "Early-Break" and "I-Limit" modes
  • Three filter settings to optimize measurement stability
  • Temperature correction of R at a reference temperature
  • Optically-isolated USB communication for transfer onto PC and report generation with FREE Data View® software
