Schleich GLP2-BASIC Tester

GLP2-BASIC Protective conductor, insulation, high voltage, leakage current and function tester

With the GLP2-BASIC multi-tester you can test a wide variety of electrical products according to the latest state of the art. With a large selection of instrument variants we offer you solutions for the most diverse testing tasks and requirements.

39 solutions for your testing task.

All kinds of electronic products may be inspected according to the latest state-of-the-art single- and multi-tester GLP2-Basic. To solve a variety of different test tasks and to meet your individual requirements, you can choose from over 45 different GLP2-BASIC models.

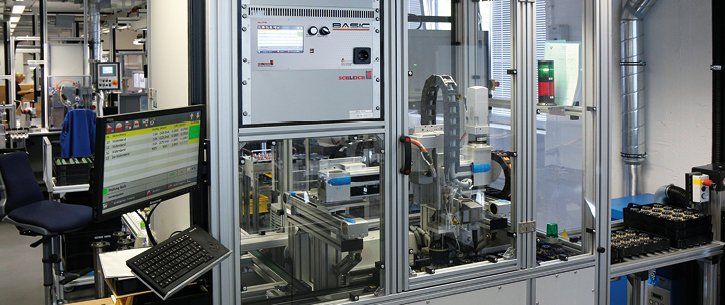

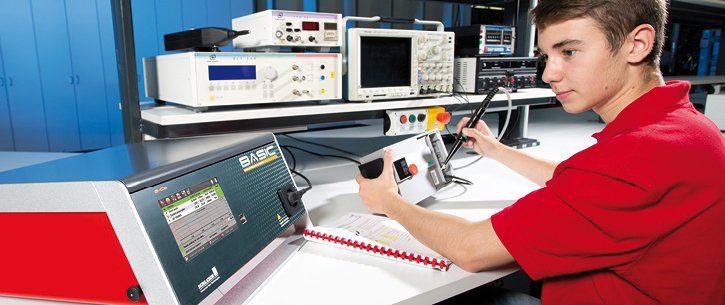

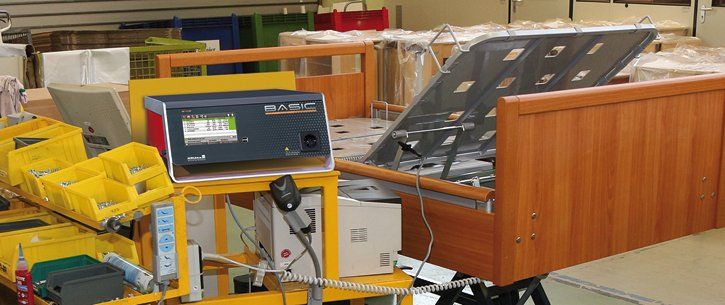

Thanks to the intelligent features, the tester covers all application fields in today´s safety- and functional test technology. It is ideally suited for production, laboratory, test field, quality management, automation and more.

The variety of features, e.g. to create your own test sequences, to enter your own data as serial number, result storage, freely configurable label print out, barcode function and many more leave nothing to be desired.

With regard to cost savings and environmental awareness, for many companies the increase of energy efficiency is an essential goal to be pursued. In energy-intensive sectors like the production, SCHLEICH supports you with sustainable and eco-friendly technology. For “clean” results”!

The new standard!

All kinds of electronic products may be inspected according to the latest state-of-the-art single- and multitester GLP2-Basic. To solve a variety of different test taks and to meet your individual requirements, you can choose from over 45 different GLP2-BASIC models.


Thanks to the intelligent features, the tester covers all application fields in today´s safety- and functional test technology. It is ideally suited for production, laboratory, test field, quality management, automation and more.


The variety of features, e.g. to create your own test sequences, to enter your own data as serial number, result storage, freely configurable label print out, barcode function and many more leave nothing to be desired.


With regard to cost savings and environmental awareness, for many companies the increase of energy efficiency is an essential goal to be pursued.  In energy-intensive sectors like the production, SCHLEICH supports you with sustainable and eco-friendly technology. For “clean” results”!


To offer perfect experience our engineers integrate only the latest technology in our testers. That is why SCHLEICH, as leading innovator, was the first manufacturer in the market who installed user-friendly touch screens in the testers.

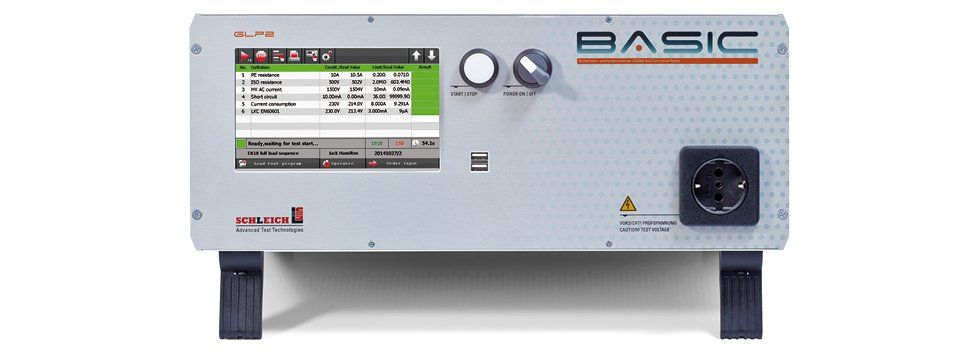

Ergonomically-optimized workplaces may increase performance to a large extent.  To optimize the individual workplace, SCHLEICH entirely revolutionized the housing concept.


Whether sitting or standing, small or tall person- the ergonomic housing design sets new standards for fatigue-free work. Thus, looking at the display, entering data as well as connecting the test object at the test socket is always perfectly-suitable for the operator.


Enormous flexibility and fast technology, combined in ergonomic design – SCHLEICH offers safety- and functional test technology which inspires!

Top of Menu

Key-Facts

Testers for HVAC, HVDC, IR, PE or leakage – in other words, with only one integrated test method.


"All in one” testers with up to 21 integrated test methods plus automatic switch over.


PE/ ground testers up to 30 A

insulation resistance testers up to 6 kV

high-voltage testers AC up to 6 kV

high-voltage testers DC up to 6 kV

functional test up to 16 A

traceable calibration certificate included

short lead time or available on stock

all test methods fully-electronic controlled

fully- and semi automatic controlled tests

manual tests

PLe, SIL3, Kat4 Safety circuit (depending on device variant and degree of risk)

high process reliability

integrated „SPS-functionality” with freely programmable script language

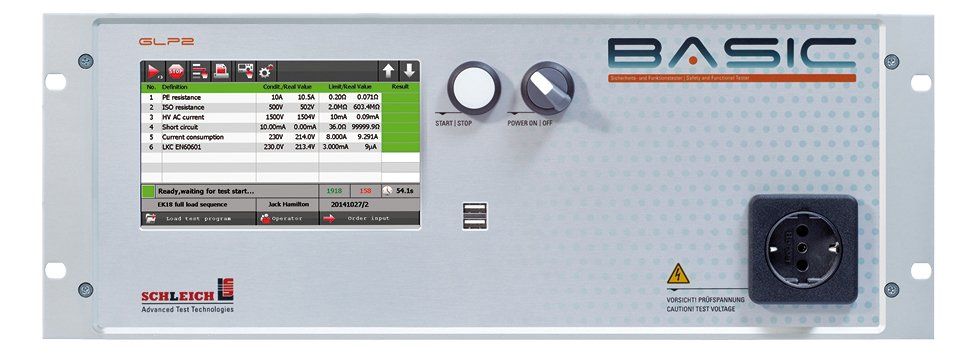

intuitive operation concept with 7″ touch display plus HDMI-interface

additional input with keyboard and mouse possible

reading of various 1D- and 2D barcodes

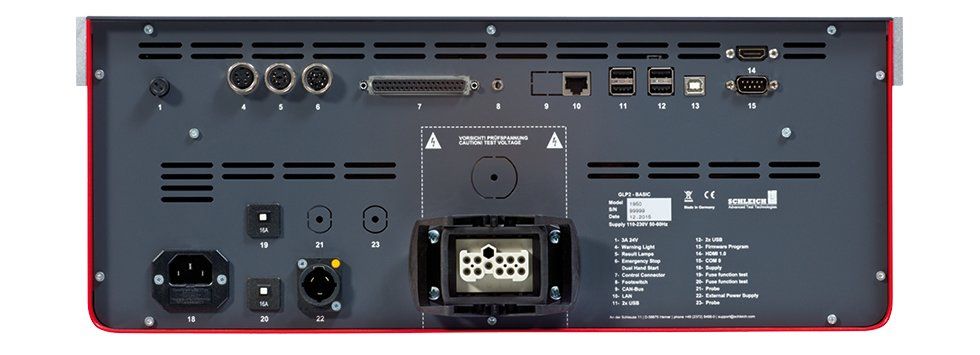

Ethernet, WLAN, USB and serial interface

communication via RS232 and/or SCPI-standard-commands

database for test sequences and test results

user administration

protocon print-out

freely configurable label print for thermal transfer printers

several label printers controllable

full network connectivity

possibility for remote maintenance or remote calibration

remote control option for automation

perfect for OEMs


Top of Menu

Automation. Interfaces. & Benefits

Automation and Interfaces.

  • digital I/O, (input/output 24 V to PLC)
  • RS232 via SCHLEICH communication protocol
  • LAN via SCHLEICH communication protocol
  • LAN via SCPI commands
  • LAN via TCP/IP socket communication (individual special software required)
  • PROFIBUS
  • PROFINET
  • EtherCAT
  • CANopen
  • Individual special solution …

Benefits of measurement technology at a glance.


Measuring technology


  • precise and fast measurements
  • TRMS » true R.M.S. measurement
  • R.M.S.- and peak value measurement
  • effective and apparent current measurement, cosφ
  • effective and apparent power measurement

PE/ Ground AC


  • PE/ Ground resistance, voltage drop
  • 10-30 A AC, adjustable, electronically controlled
  • 6-12 V AC
  • 0-1200 mΩ

Insulation DC


  • insulation resistance
  • 30-1000 V DC, adjustable, electronically controlled
  • max. 3 mA
  • 100 KΩ-10MΩ

High-voltage AC


  • 50-6000 V AC, adjustable, electronically controlled
  • with safety current limiting max. 3 mA
  • without safety current limiting max. 100 mA
  • incl. ARC-detection

High-voltage DC


  • 50-6000 V DC, adjustable, electronically controlled
  • with safety current limiting max. 4 mA
  • without safety current limiting max. 100 mA

Function 5 A


  • 12-260 V AC,adjustable, electronically controlled
  • max. 5 A
  • max. 1300 W, 1300 VA, 1300 VAR
  • incl. short-circuit test

Leakage current, nominal current 5 A


  • according to standard EN60990 & EN60601 & UL-measruing circuits
  • R.M.S., peak value, DC-/AC-share
  • 1 μA – 30 mA

Function 16 A


  • 12-260 V AC, external supply
  • max. 16 A
  • max. 4200 W, 4200 VA, 4200 VAR
  • incl. short-circuit test

Equivalent leakage current, nominal current 16 A


  • 10 μA-30 mA
  • test voltage 40 V AC
  • conversion to 230 V AC

Resistance

  • 1 Ω-100 kΩ
