Schleich GLP3 AC/DC Hipot Tester

GLP3 Unlimited class leading test technology.

GLP3-testers are the high-end testers of SCHLEICH for complex test tasks at different products. The TOP-Class of test and measurement technology. The multitester par excellence. Your plus in versatility, profitability and speed. Flexible ⋅ intuitive ⋅ uncomplicated ⋅ feasible.

GLP3-testers are the high-end testers of SCHLEICH for complex test tasks at different products. They are for example used for testing electric motors, electronic components, household appliances, etc.

 The performance of GLP3-tester is the combinations of all its strengths: user-friendliness, software, hardware, database concept – everything is perfectly coordinated based on trendsetting technologies.  The lifelong update-ability of the tester guarantees to always be on the latest state-of-the-art level.  The integrated RS232 interface allows to print the test results directly. You can use our Windows® software

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button

  • Slide title

    Write your caption here
    Button
  • Schleich GLP3 AC/DC Hipot Tester

    Slide title

    Write your caption here
    Button
Product Overview PDF Contact Us Today for more information

Test technology 4.0

The GLP3-Windows® testers are our premium testers to test a variety of different complex products. They are preferably used to test electric component groups, run-in test benches, power supplies, cables, washing machines and more and are ideally suited for complex test benches and interlinked assembly- and test lines.


After connecting all test object´s connections, the different types of tests and connections are automatically switched over by the tester´s internally installed switchover. Each test step is automatically evaluated and the operator gets a clearly reproducible Go/ No Go result at the end of the entire test sequence.


SCHLEICH was one of the first tester manufacturers which consistently and successfully integrated PCs in the GLP3 testers to facilitate measuring, controlling and storing processes.  Based on years of experience with the system, our engineers and technicians were able to develop a matured test system with comprehensive software. Many useful software tools are included in our standard scope of delivery.


Hard- and Software are developed and manufactured in-house at SCHLEICH.  To keep our pole position in the test equipment market, also established products are further enhanced. The software and the database are at the most modern state of  the proven Microsoft® technology.  Our versatile innovations always set new technological standards for modern test benches with Windows®. The system offers a clear display of the test process for the operator and extensive input- and configuration features for the setter.


Also SCHLEICH´s quality management is striking. For this purpose, an extensive statistical analysis in integrated in the tester, which leaves no questions unanswered and which allows you to document your proven quality to yor customer by means of a variety of different test report printouts.


Customize your tester!

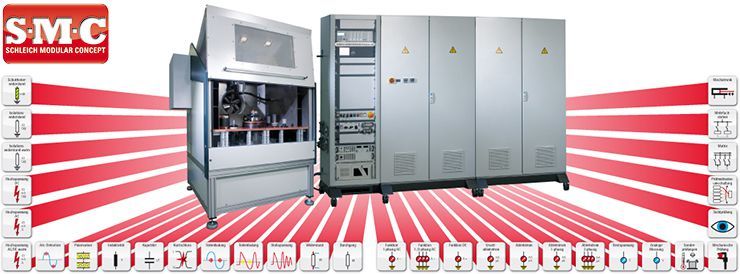

The SCHLEICH MODULAR CONCEPT makes it possible.


Based on this concept, the GLP3 testers offer almost unlimited possibilities to combine and to integrate different safety- and functional test methods in only one device.

You can select from a wide range of test methods the ones you need.


If only one or a variety of test methods, you  define the configuration! This means, that your GLP3 e.g. may be configured as high-voltage-, or PE/ ground bond resistance tester. For more complex test tasks, a combination of all test methods might be needed.


The SCHLEICH·MODULAR·CONCEPT of the GLP3 class allows you to configure a tester, perfectly matching to your requirements. A further advantage is, that the versatility is realized by installing all tests  in a compact, modular housing and not by integrating several single testers in an oversized test cabinet. The housing´s size results from type and extent of the different tests.


This flexibility not only offers you a huge price benefit, furthermore each tester contains our engineer´s experience from over 14.000 installations. This experience flows consistently and without any compromise in further developments.


This is “customer based technology”.


If manual or automatic single-, double or multi test stations, if with or without test cover or table or testing in automatic assembly lines. There are no limits regarding the variety of GLP3 applications.

Top of Menu

Unlimited test technology in perfection.

PE/ ground test up to 200 A

Insulation test up to 10 kV

High voltage test AC up to 100 kV

High voltage test DC up to 100 kV

Leakage current test 30 mA – 1 MHz

Functional test 1- and 3-phase up to 1,000 A

Perfect for complex test benches or interlinked assembly- and test lines

All kinds of safety tests

Measurement of physical units: Pressure, temperature, leakage …

Visual inspection systems

Up to 500 programmable test connections

Multi stations with up to 50 test stations

Fast, precise measurements with latest DSP-technology (digital signal processor)

High-resolution measurement technology for all test methods

Large switch matrix modules for all kind test methods

PLe, SIL3, Kat4 Safety circuit

High process reliability

Freely-programmable in- and outputs

Integrated industrial PC with Windows 7® or Windows 10®

Central database for millions of test sequences and test results – SQL-server

Extensive statistical analyses – Trending, Gaussian distribution, FPY …

Traceability for all test object´s components

User administration

Configurable test report printout

Freely configurable label print for thermal transfer printers

Several label printers addressable

Reading of any 1D- and 2D-barcodes

Remote control: RS232, SPS, PROFIBUS, PROFINET, CAN, DeviceNet, Ethernet, EtherCat, USB …

Communication with the tester: RS232, PROFIBUS, PROFINET, CAN, Ethernet, EtherCat, USB, analog, PWM …

Full network connectivity

Data exchange with ERP- and CAQ-systems

Connection to MES-systems

Ideal OEM-conditions for easy integration in automatic lines

Remote maintentance and remote calibration possible


Top of Menu

Automation. Interfaces. & Benefits

digital I/O, (input/output 24 V to PLC)

RS232 via SCHLEICH communication protocol

LAN via SCHLEICH communication protocol

LAN via TCP/IP

USB

PROFIBUS

PROFINET

EtherCAT

CANopen

CAN-Automotive

DeviceNet and more …

individual special solution …

 Benefits of measurement technology at a glance.


Measurement technology


Precise and fast measurements

TRMS – true R.M.S. measurement

R.M.S.- and peak value measurement

Effective and apparent current measurement, cosφ

Effective and apparent power measurement

PE/ Ground AC


PE/Ground resistance AC

10 – 200 A AC, adjustable, electronically controlled

Current steps 1 A

6, 12, 18, 24 V AC

PE/ Ground DC


PE/Ground resistance DC

1 – 200 A DC, adjustable, electronically controlled

Insulation resistance DC


Insulation resistance

30 – 10.000 V DC, adjustable, electronically controlled

100 kΩ – 10 GΩ

„Warm insulation resistance test”

High-voltage AC


50 – 10.0000 V AC, adjustable

with safety current limiting max. 3 mA

without safety current limiting max. 2 A

ARC-Detection

„Warm high-voltage test”

High-voltage DC


50 – 50.000 V DC, adjustable, electronically controlled

with safety current limiting max. 4 mA

without safety current limiting max. 100 mA

„Warm high-voltage test”

Function AC


1- and 3-phase

from1 – 1.000 V AC

max. 500 A

apparent-, active and reactive/ idle power

cos φ

incl. short-circuit test

Function DC


1 – 500 V DC

max. 500 A

incl. short-circuit test

Leakage current


according to standard EN60990 & EN60601 & various UL-Standards

0,1 μA – 30 mA

R.M.S., peak value, DC-/AC share

Frequency range up to 1 MHz

medical

Patient leakage current measurement

Patient auxiliary leakage current

Touch current measurement– between 2 test probes

Patient interfaces 8 – extendable on request

Operational ground of the test object

two test probe connections

insulated contactings S2 & S3

on request, all connections with high-voltage test available

Equivalent leakage current


according to standard with convertion to any rated voltage

Residual voltage


1- and 3-phase

Resistance


1 μΩ – 500 MΩ

test current 1 – 200 A

4-wire technolgy

Inductance


inductance measurement via integrated measuring bridge

4-wire technology

Impedance


impedance measurement via integrated measuring bridge

4-wire technology

Capacity


capacity measurement via integrated measuring bridge

4-wire technology

Internal resistance


battery´s inner resistance

1 μΩ – 10 Ω4

4-wire technology

Free analog inputs


Measuring ranges 50 mV, 500 mV, 5 V, 50 V, 500 V

AC or DC

multi-channel

insulated




⇒ Find more details here

Top of Menu

Description Title

Luminaire inspection


Semi-automatic luminaire test bench

With 15 lamp adapters

Pick-By-Light operator´s guidance

Label print by 2 different printers


Inspection of heatings with rotary indexing table


Automatic test run

Linear conveyor with handling

Automatic contacting

All-in-one solution incl. entire mechanics from SCHLEICH


Run-in test bench for electronic assembly


6 test stations

Integrated vibraction unit

Integrated temperature control of assemblies

Extended variants with 50 test stations


Tester for frequency converters


Fully-automatic load test

Automatic calibration of the test object


Tester for transformers


Power measurement for up to 6 transformers at the same time

Heating measurement of windings and temperature-rise determination


Tester for component groups


Several test stations

Automatic CPU-flashing

Automatic calibration

Integrated needle adapter


Komplex Matrix (interior view of the tester)


Tester with over 500 clamps

High-voltage switchover up to 6.000 V, 1 A
