AEMC Power & Energy Logger Model PEL 105

AEMC Power & Energy Logger Model PEL 105

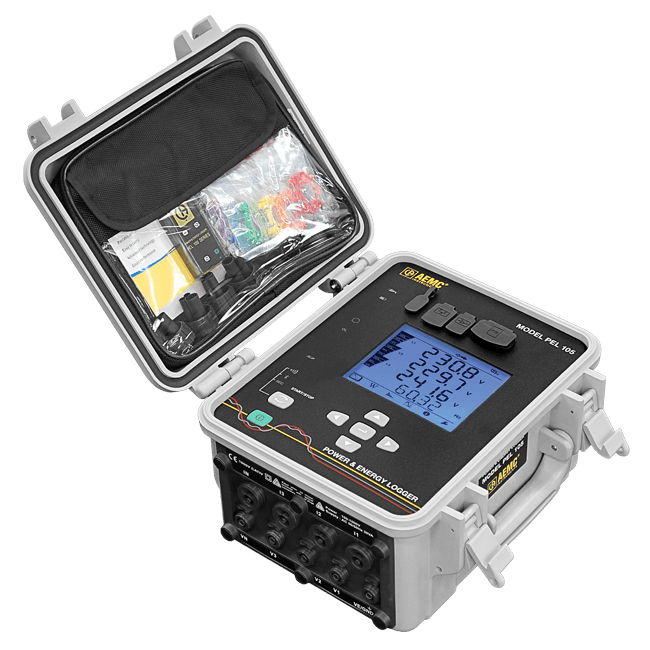

AEMC’s Model PEL 105 is a simple to use, power and energy data logger that monitors both traditional and renewable energy sources.

It monitors and records True RMS voltage and current, power, energy, cost and harmonics locally or from anywhere in the world. The PEL 105 is built into a waterproof case with an IP67 rating designed for outdoor use and is ideal for pole mounting and can be powered from a phase being monitored. This product is perfect for electricians, engineers and contractors doing work in the areas of building and system monitoring and upgrades, including compliance to article 220.87 of the NEC, as well as overall energy audits and incoming power monitoring. It is available with an Android™ App to configure, view and capture data wirelessly. Bluetooth and Wi-Fi wireless communication provides the operator with the ability to work from a safe distance away from dangerous voltages and currents without the need to wear PPE gear.

Features of the Power & Energy Loggers:

  • Energy measurements VAh, Wh (source/load indication) and varh (including quadrant indication)
  • Power measurements: VA, W and var
  • Automatic recognition of the connected current sensors/probes
  • PF, CF, Cos (ϕ), Tan (ϕ), DPF, THD and Hz
  • Harmonics up to the 50th order for 50/60Hz voltages and currents and 7th order for 400Hz
  • Simultaneous RMS measurements of each phase at 128 samples/cycle and DC

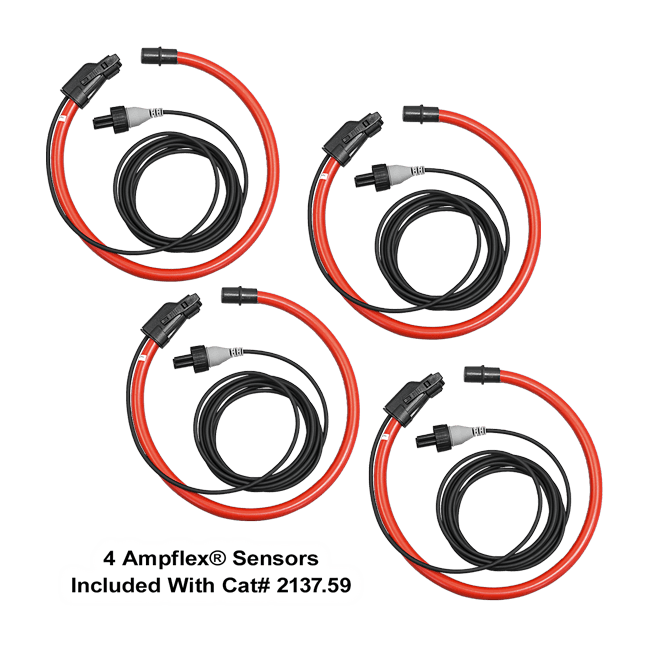

  • AC current measurements from 200mA up to 10,000A using flexible current sensors
  • AC/DC Current Probe, Model J93, is available for measuring current up to 5000Adc & 3500Aac
  • Provides all the necessary functions for power and energy data logging for 50Hz, 60Hz, 400Hz & DC distribution systems
  • Simple-to-use, single-, dual- (split-phase) and three-phase (Y, ∆) power and energy loggers

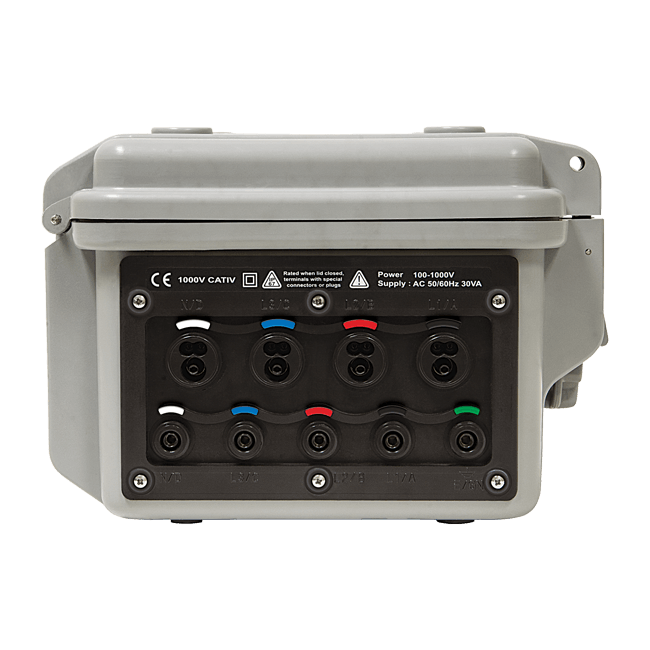

  • Designed to work in 1000V CAT III and 600V CAT IV environments and fits in many distribution panels
  • Configure current and voltage ratios to match PT and CT ratios
  • Power adapter allows the PEL to be powered from a phase input
  • PEL 103 & PEL 105 can be configured from the front panel, DataView® control panel or the Android App (available through Google Play)
  • Updated features in the DataView® software
  • USB, LAN, Ethernet, Bluetooth (Class 1 wireless communication, up to 300 feet away, line of sight), and Wi-Fi (PEL 105 only)
  • Satisfies the monitoring requirements of NEC 220.87
  • Record cost of energy usage including time of use
  • Bright blue, four line LCD on the Model PEL 103
  • Storage of measured and calculated values on an SD-Card or SDHC-Card (accepts 2GB to 32GB)
  • Includes DataView® software for data downloading and storage, real-time display, analysis & report generation with supplied pre-defined or custom templates
  • Pole mountable (PEL 105)
AEMC Power & Energy Logger Model PEL 105
AEMC Power & Energy Logger Model PEL 105

Applications:

  • Measure efficiency, find areas for potential savings
  • Track sub-billing occupants for energy costs
  • Assign energy costs to departments or operations within a department
  • Track peak demand periods and find opportunities for surcharge reductions
  • Determine present capacity and circumvent unnecessary electrical expansion costs
  • Monitor stray voltages and neutral current
  • Verify the reliability and operation of electrical machinery
  • Improve response time to solve power related problems
  • Track energy availability and reliability of supply
  • Reduce field service time at sub-stations
  • Baseline studies for system upgrades in high-rise and office buildings
  • Remote configurations, monitoring and event loading
