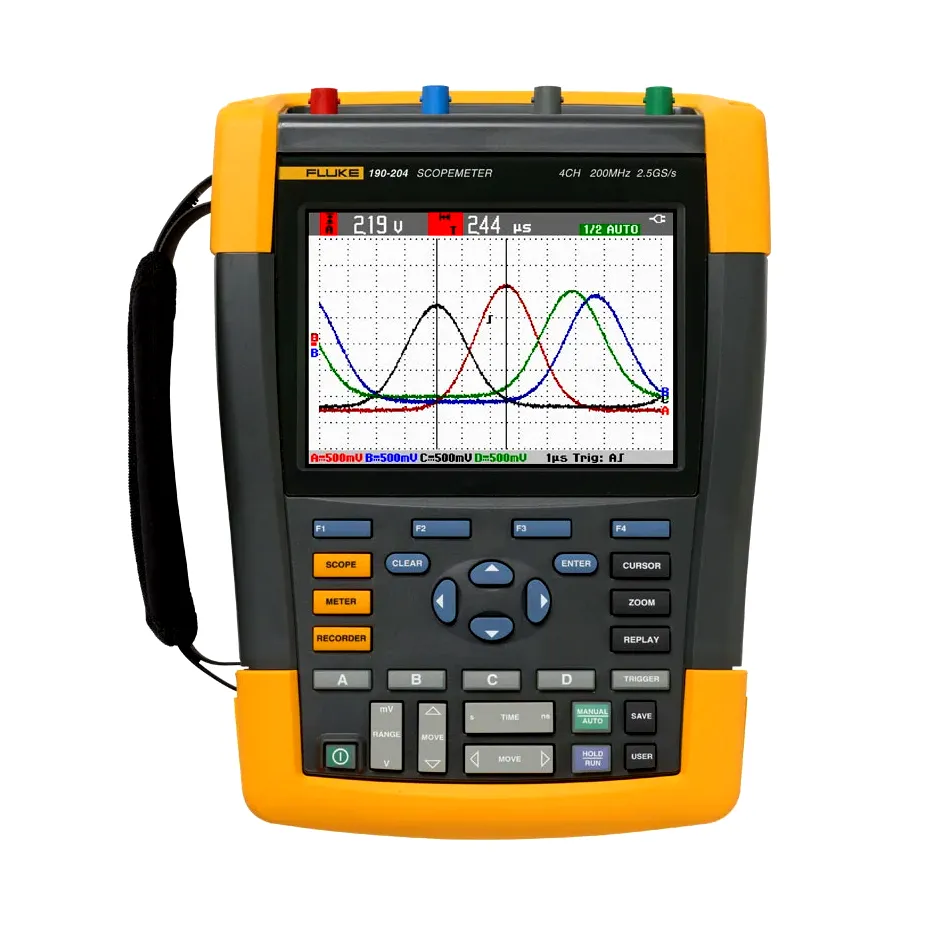

Fluke 190-204 ScopeMeter® Test Tool

See More, Fix More with the Four-Channel CAT IV Rated Fluke ScopeMeter® 190-204

Product overview: 190-204 ScopeMeter® Test Tool

The Fluke ScopeMeter® 190-204 combine the highest safety ratings and rugged portability with the high performance of a bench oscilloscope. Designed for plant maintenance engineers and technicians, these tough ScopeMeter® test tools go into harsh, dirty, and hazardous industrial conditions to test everything from micro-electronics to power electronics applications.

The 190-204 ScopeMeter® is the one test tool you will reach for to tackle just about any troubleshooting task. They include a multimeter, TrendPlot™ and ScopeRecord™ roll paperless recorder modes and hands free operation with Connect-and-View™ triggering, and much more:

• Two electrically isolated inputs
• CAT III 1000 V / CAT IV 600 V safety rated
• 200 MHz bandwidth model
• 2.5 GS/s
• Deep memory: 10,000 samples per channel waveform capture so you can zoom in on the details
• Dedicated 5000 Count digital multimeter
• Connect-and-View continuous auto-trigger, single shot, pulse width, and video triggering
• ScopeRecord roll mode, capture waveform sample data for up to 48 hours
• TrendPlot, trend measurement readings for up to 22 days
• Advanced automatic measurements, power (Vpwm, VA, W, PF) and time (mAs, V/s, w/s)
• IP-51 rated for dust and drip proof to withstand harsh environments
• Isolated USB ports for memory devices and PC connectivity
• Li-Ion battery for extended operating timespan
• Up to 7 hour (BP291 included standard)
• Charge spare battery using optional external battery charger EBC290
• Easy-access battery door to make it easy to swap batteries
• A handy slot to tether and lock down the oscilloscope while unattended using a standard Kensington® lock


Fluke 190-204 - 20 years of ScopeMeter® Test Tool Innovation

As the first four-channel portable scope safety rated CAT III 1000 V / CAT IV 600 V, the Fluke ScopeMeter® 190-204 combines an unprecedented level of performance, ruggedness, and portability with 200 MHz bandwidth and real-time sampling rates up to 2.5 GS/s and 200 ps resolution to capture noise and other disturbances. This model feature deep memory up to 10,000 samples per channel; so you can examine very small parts of the waveform in detail, and it is IP-51 rated to withstand dust, drips, humidity, and wide temperature variations. Fluke ScopeMeter® test tools are hand-held battery operated, designed to meet the demands of field service professionals.
